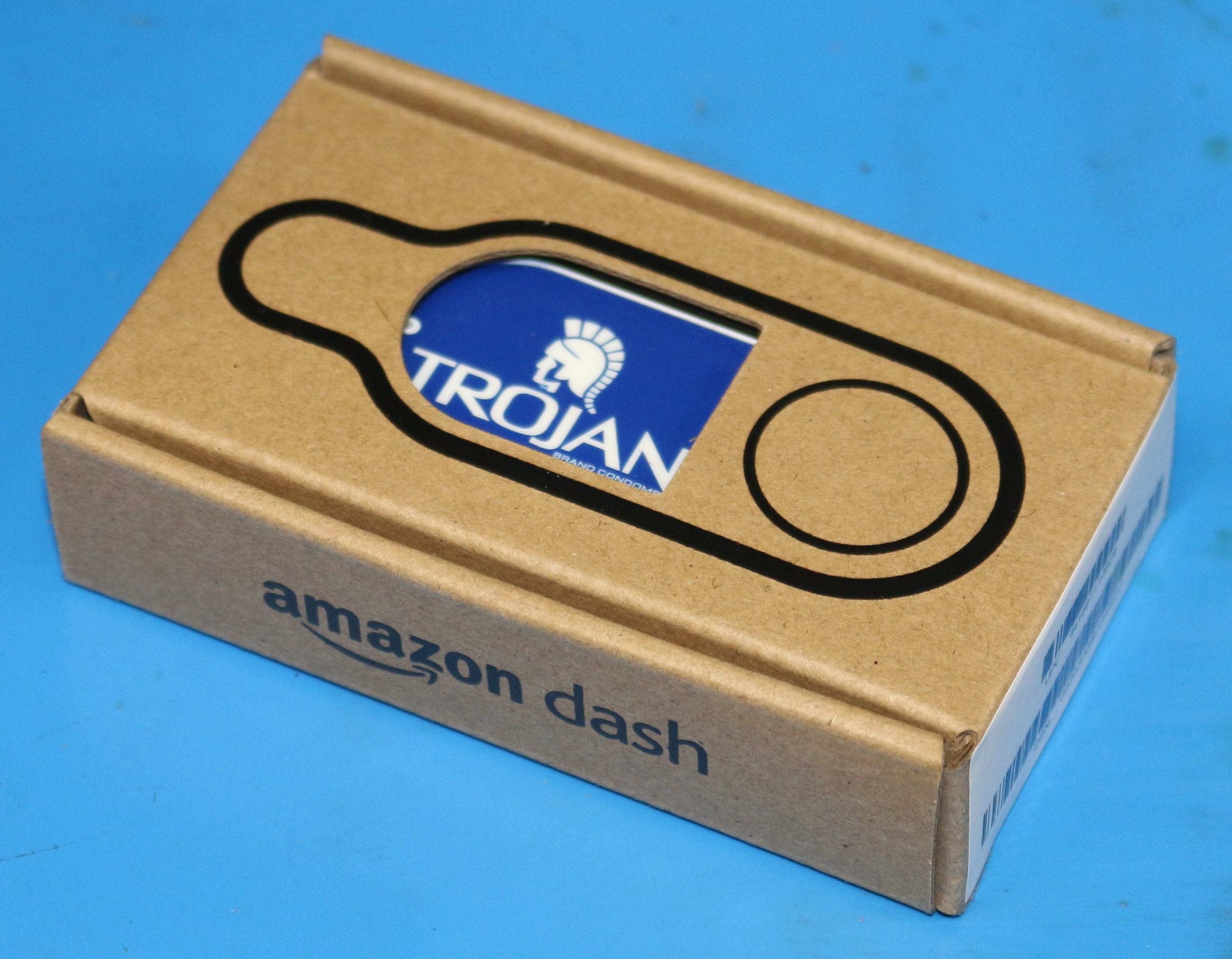

JK29LP “Amazon Dash”
ICs
| Vendor | Model | Package | Die(s) | Notes |
|---|---|---|---|---|

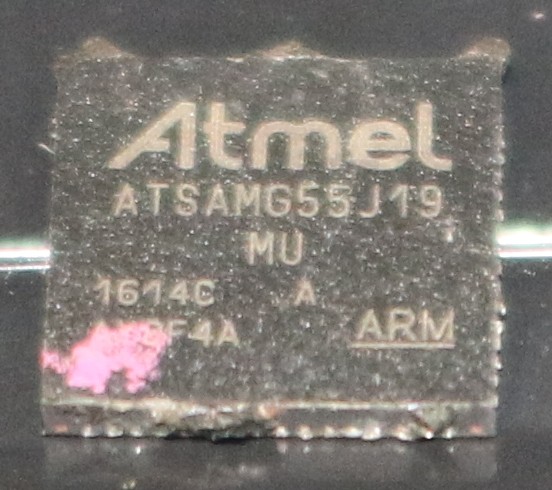

| Atmel | ATSAMG55J19 |  |  | “32-bit ARM ® Cortex ® -M4 RISC processor with FPU” |
| Atmel | ATWINC1500B |  |   | “IEEE 802.11 b/g/n IOT network controller SoC” |

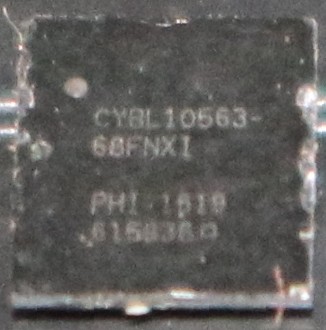

| Cypress | CYBL10563-68FNXI |  |  | “RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz” |
| MT | 25Q032 |  |  | “32Mb, 3V, Multiple I/O Serial Flash Memory” |
| TI | TPS6120XAC |  |  | “Low Input Voltage Synchronous Boost Converter” |

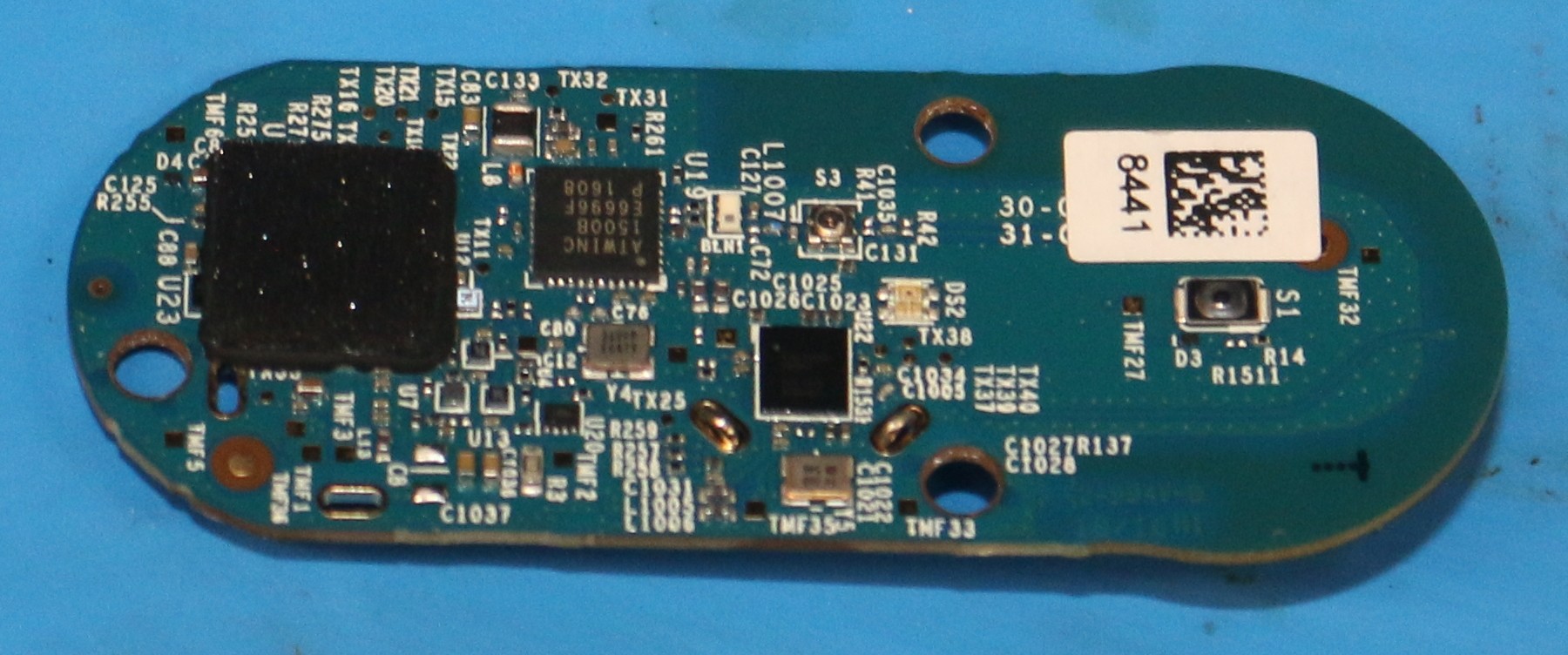

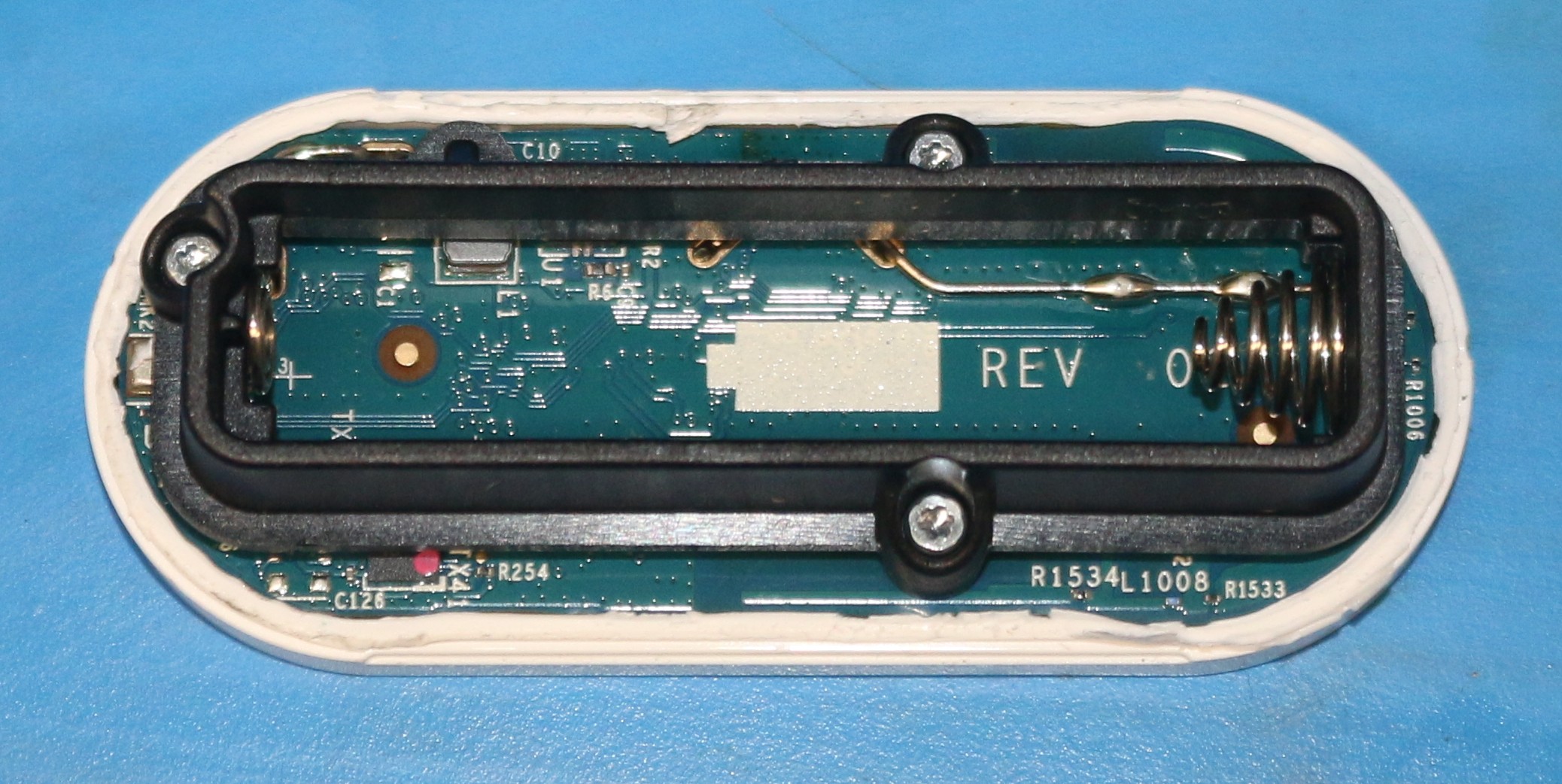

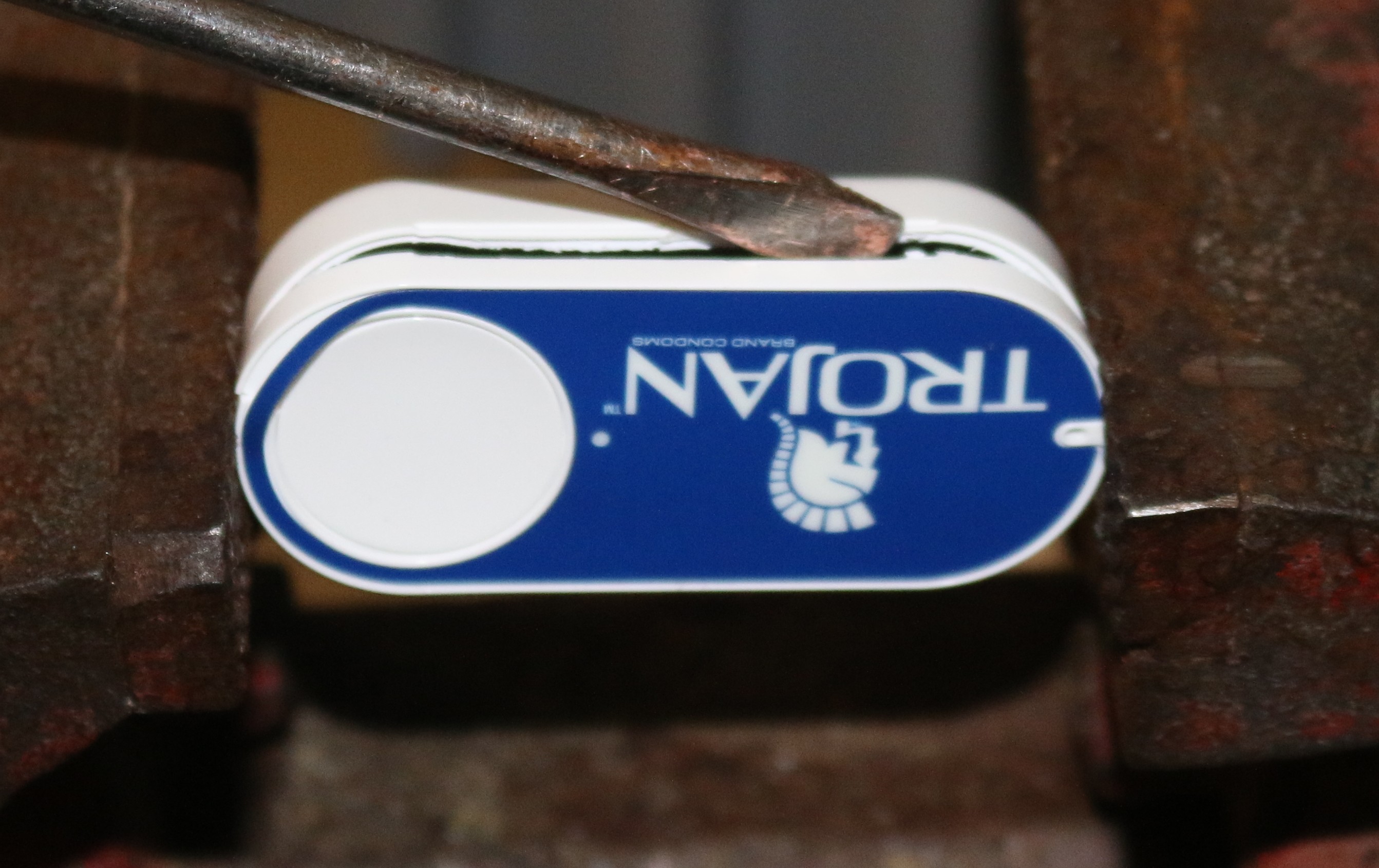

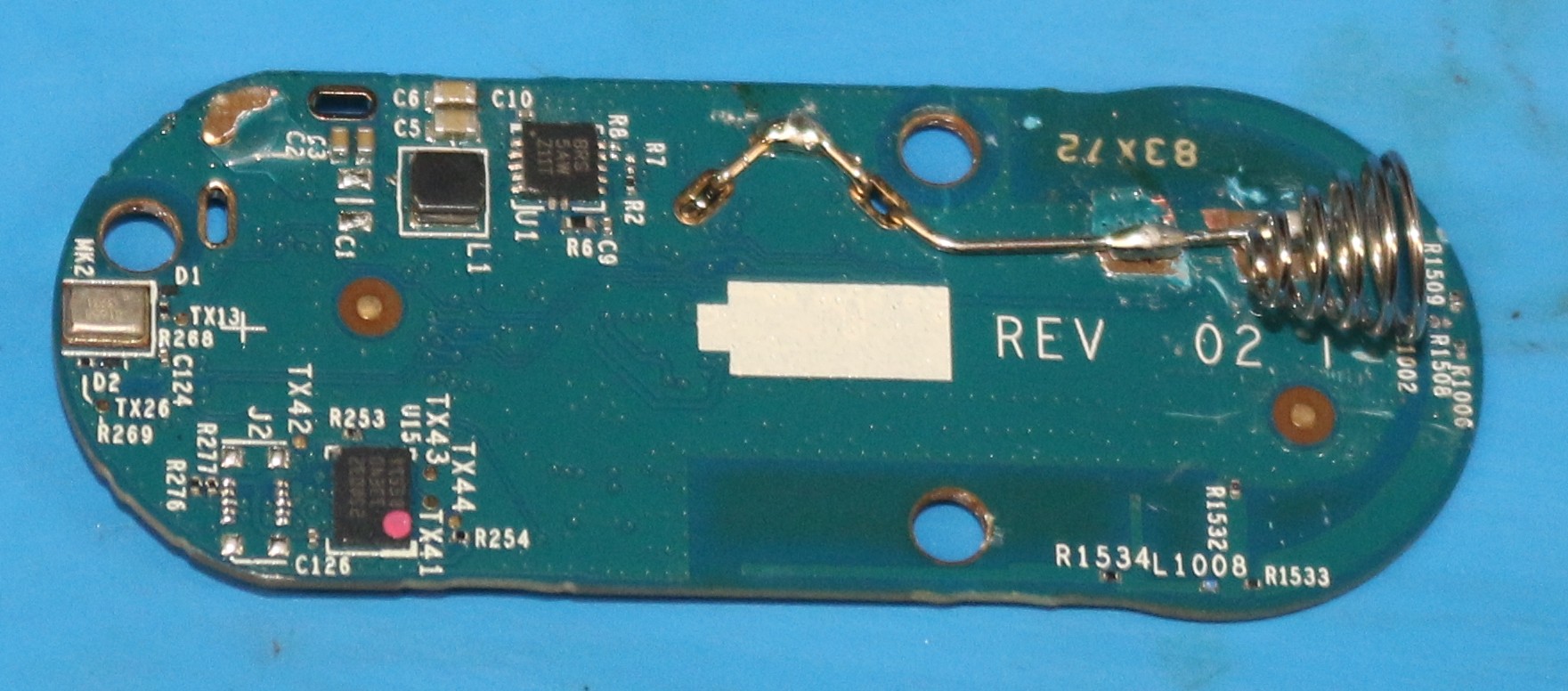

Teardown
