infosecdj:motorola:mc6845p-jr5
, , , ,

The classic CRT controller.

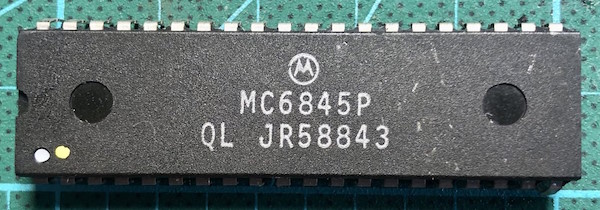

Package

(Logo)
MC6845P
QL JR58843

Die

JR5
MC6845

siliconprawn.org_map_motorola_mc6845p-jr5_single_motorola_mc6845p-jr5_infosecdj_mz_nikpa20x.thumb.jpg

Top metal imaged using Nikon Plan Apo 20x/0.75

  • Single (31061×32258, 224.448MiB)
