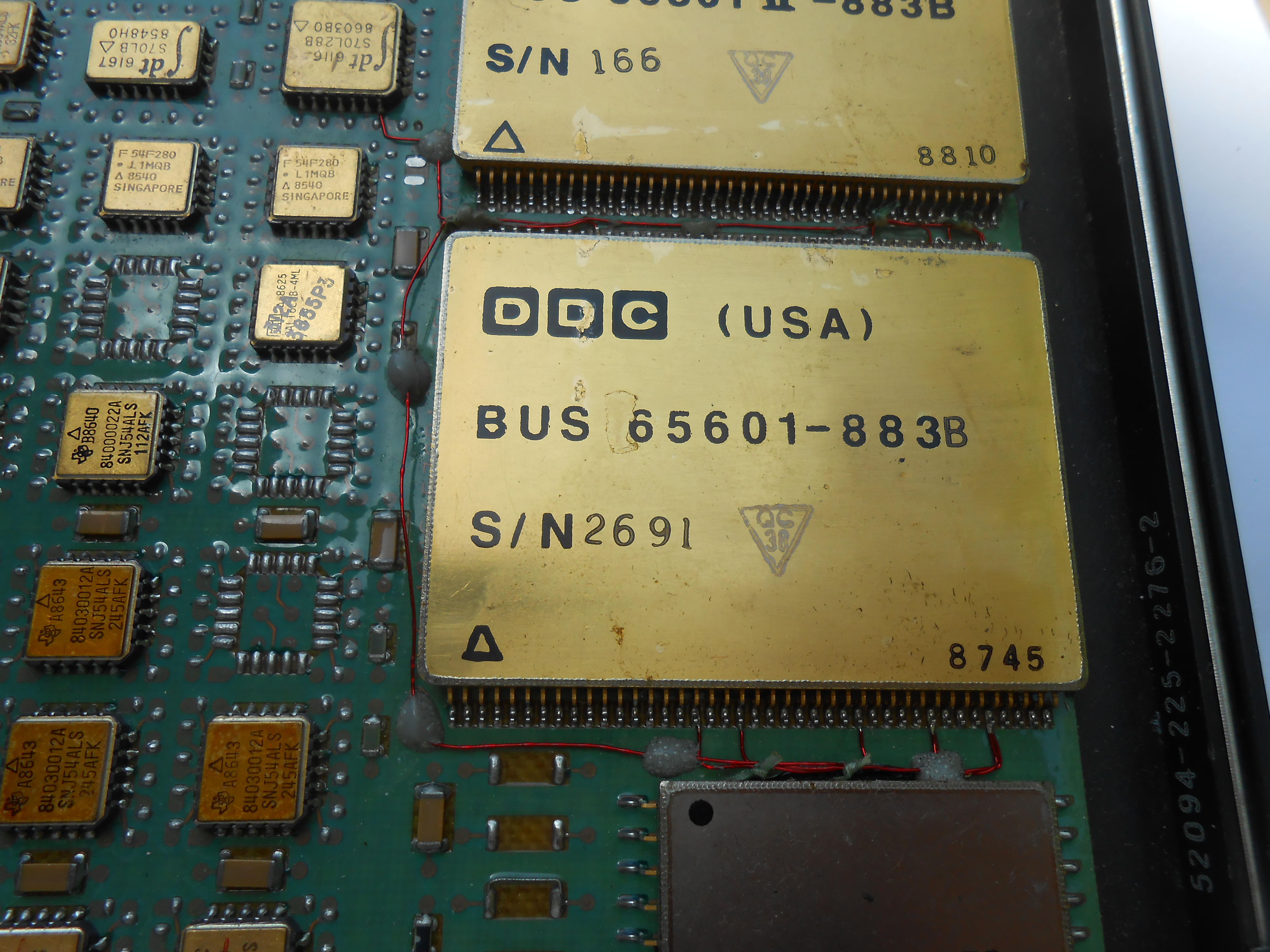

Dual MIL-STD-1553 interface

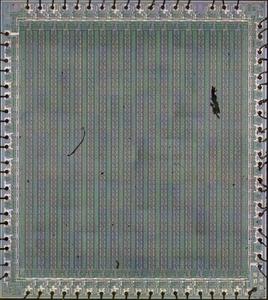

Gate array: CDI (Computing Devices International?) HC12605

mz_die3

• Single (4342×5432, 13.5213MiB)

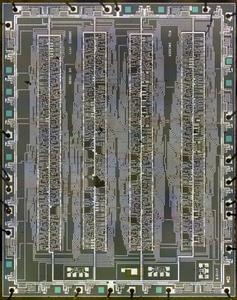

Harris HD 15530, “MTU Encoder” from 1977: “MTU” is a MIL-STD-1553 term

mz_die4

• Single (10132×8497, 49.9694MiB)

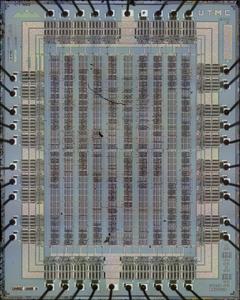

Gate array: UTMC MK63000C / UT300C

mz_die5

• Single (7852×7556, 44.0822MiB)

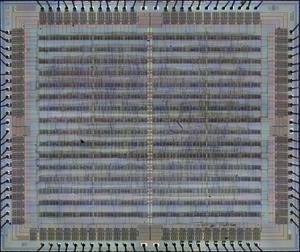

Gate array: UTMC MK64000B / UT1024B

mz_die6

• Single (3044×2000, 3.66719MiB)

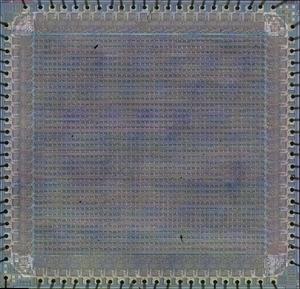

Gate array: CDI (Computing Devices International?)

mz_die1

• Single (7043×7871, 40.3344MiB)

mz_die5_zoom

• Single (2536×2563, 3.12521MiB)

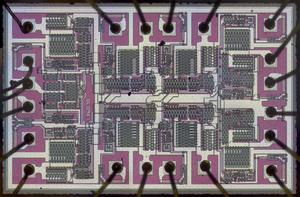

Unknown SSI CMOS logic

mz_die2

• Single (4986×6308, 21.0024MiB)
