azonenberg:xilinx:xc2c128

Table of Contents

Package
Die
Map

collection az, vendor xilinx, type logic, type logic/programmable, type logic/programmable/cpld, foundry umc, tech 180nm, year 2002

Xilinx CoolRunner-II CPLD with 128 macrocells (eight function blocks). Die revision B.

Package

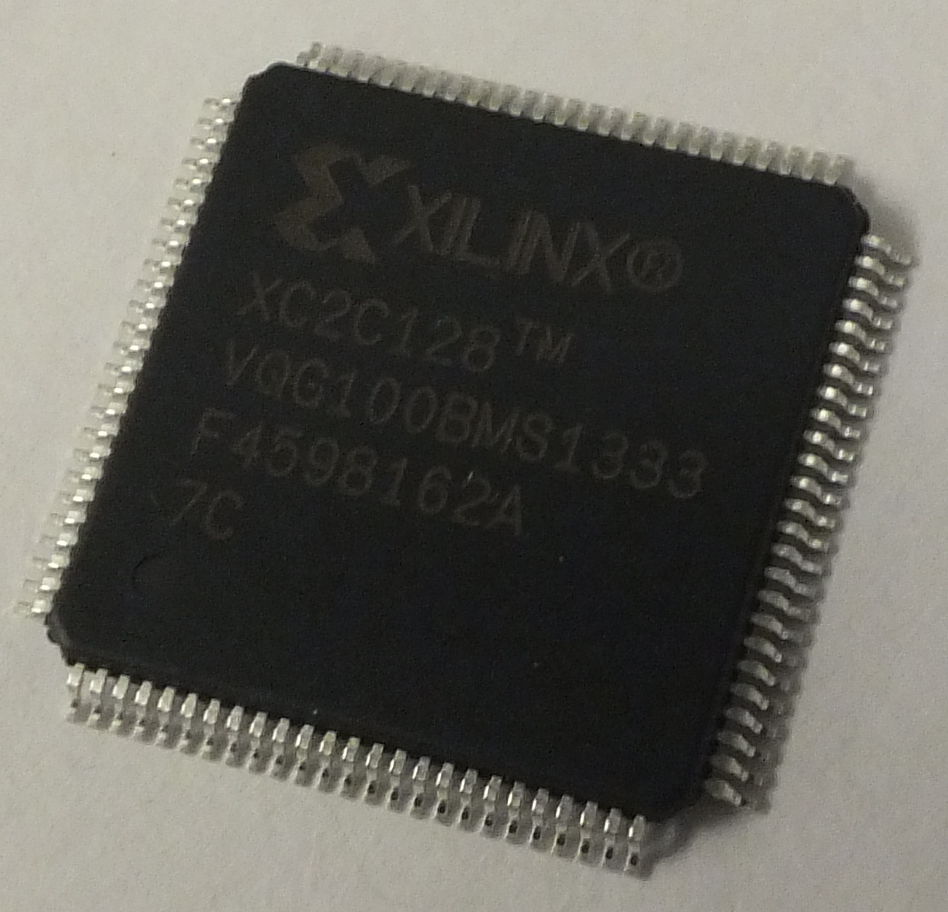

VQG100 - 100-pin 0.5mm TQFP

Markings:

[Xilinx logo] 2C128 (TCM)
VQG100BMS1333
F4598162A
7C

Die

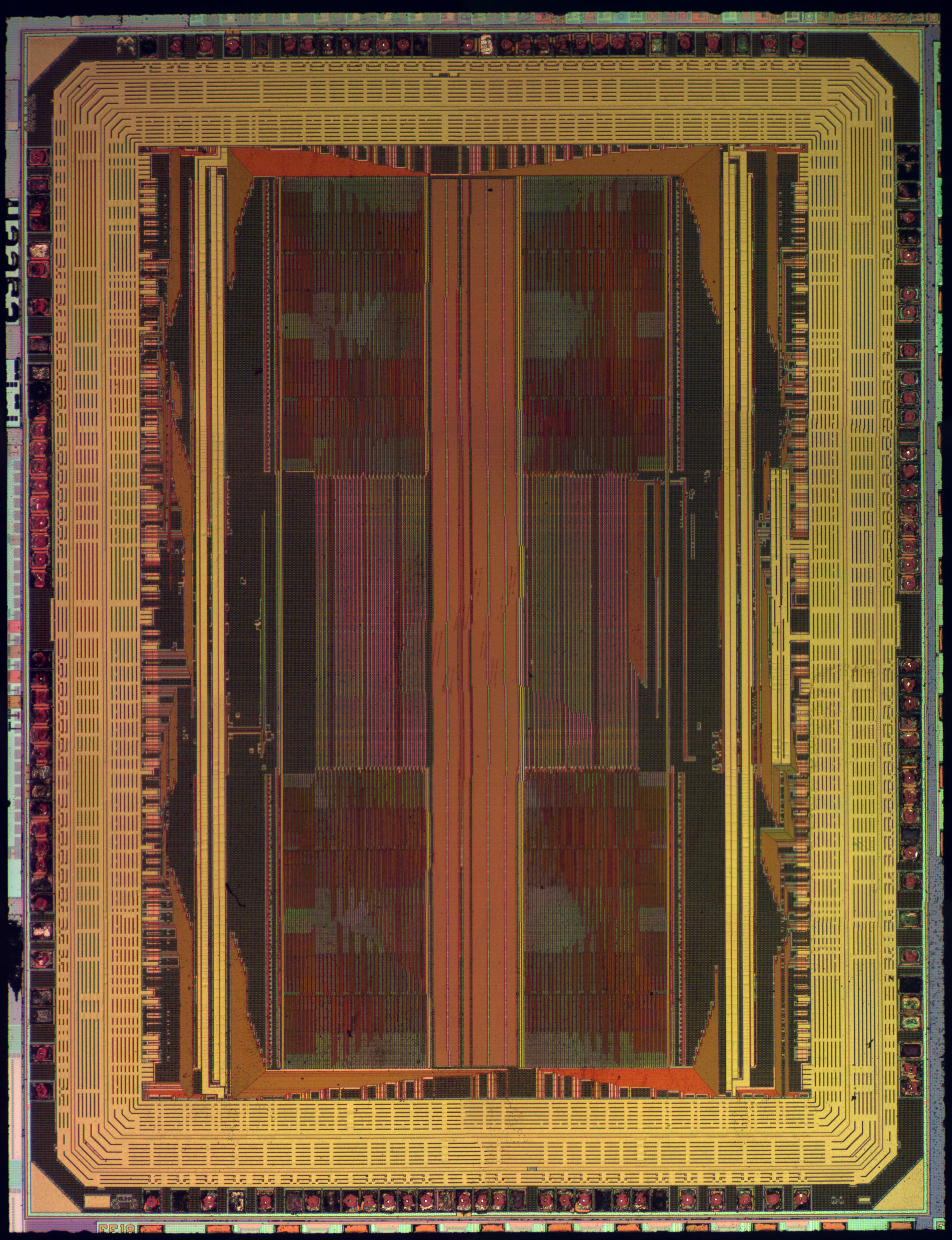

Die size: 2710 x 3540 μm (9.59 mm^2)

Map

TODO
