collection az, vendor winbond, year 2008, type memory, type memory/flash, type memory/flash/nor, foundry unknown, tech unknown

1MB SPI flash

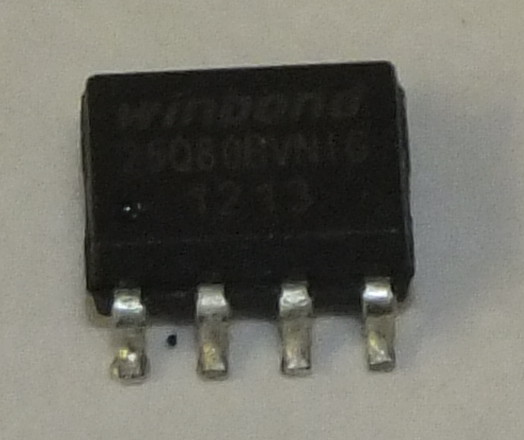

Package

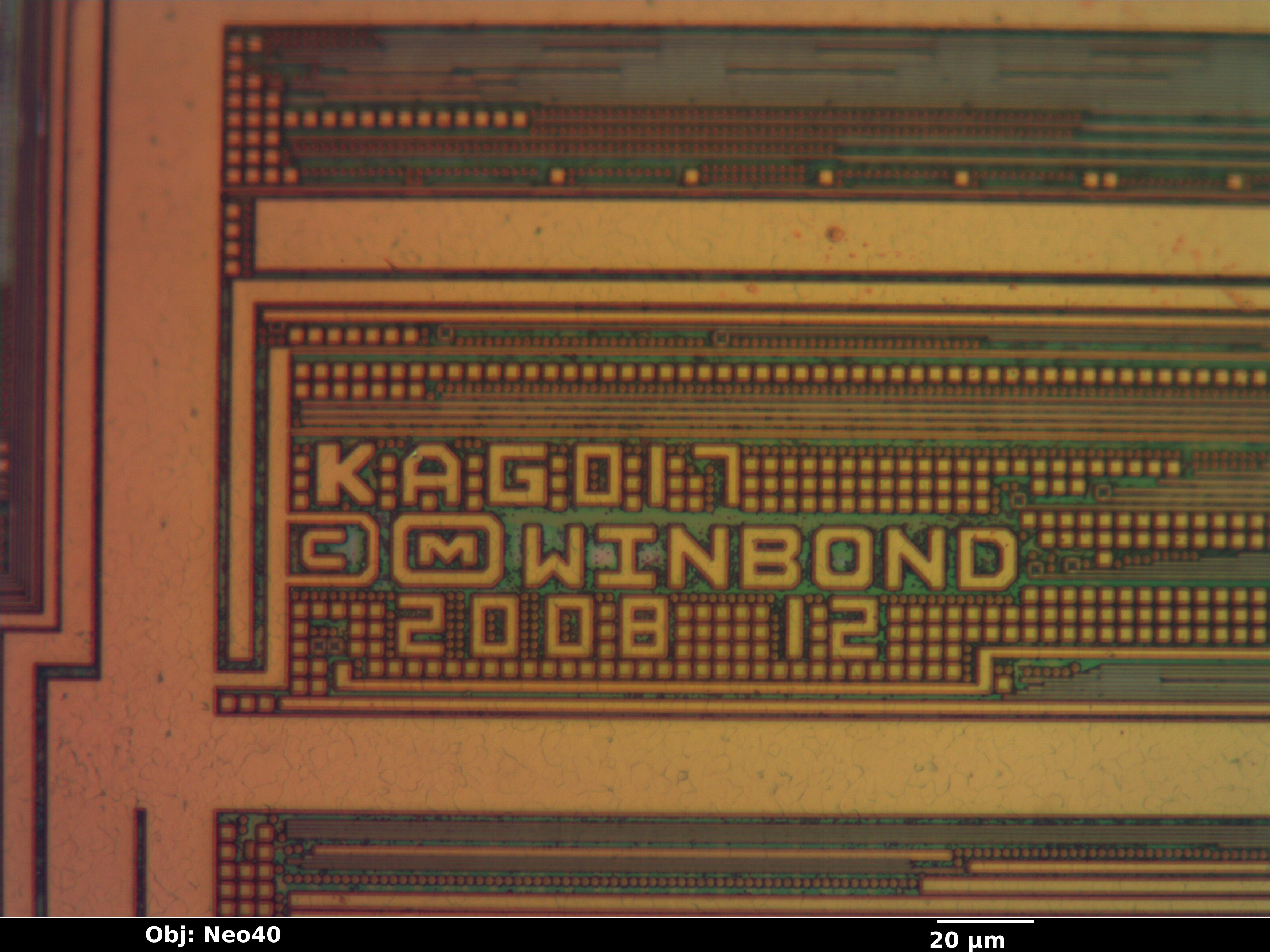

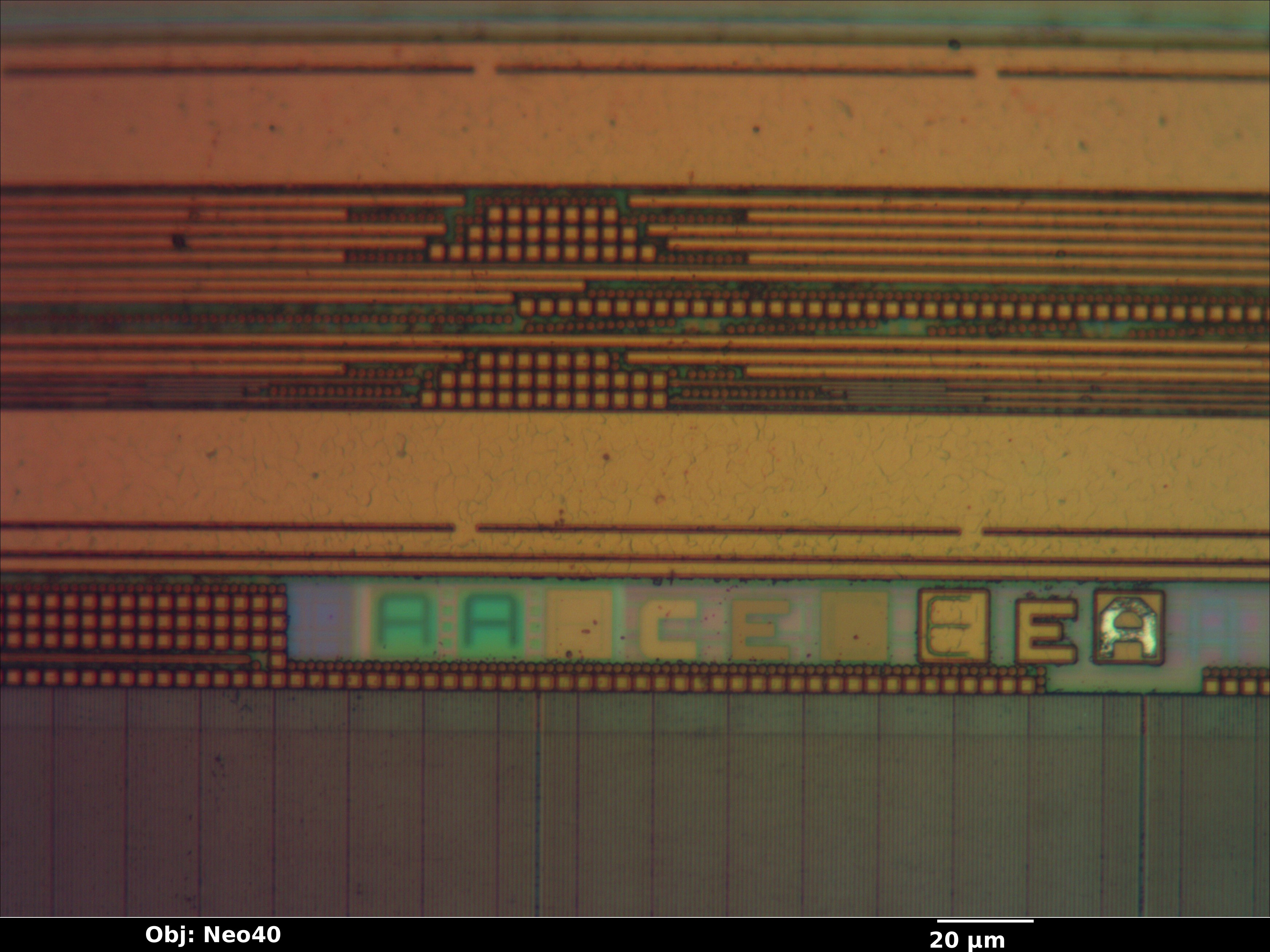

Die

Die size is approximately 1590 x 1920 μm (3.0 mm²)

Map

http://siliconprawn.org/map/winbond/w25q80bv/mz_bf_neo10x/
