azonenberg:microchip:enc424j600

collection az, vendor microchip, type interface, type interface/serdes, type interface/serdes/ethernet, type network, type network/ethernet, foundry tsmc, tech 180nm

10/100mbit SPI/parallel Ethernet controller.

Package

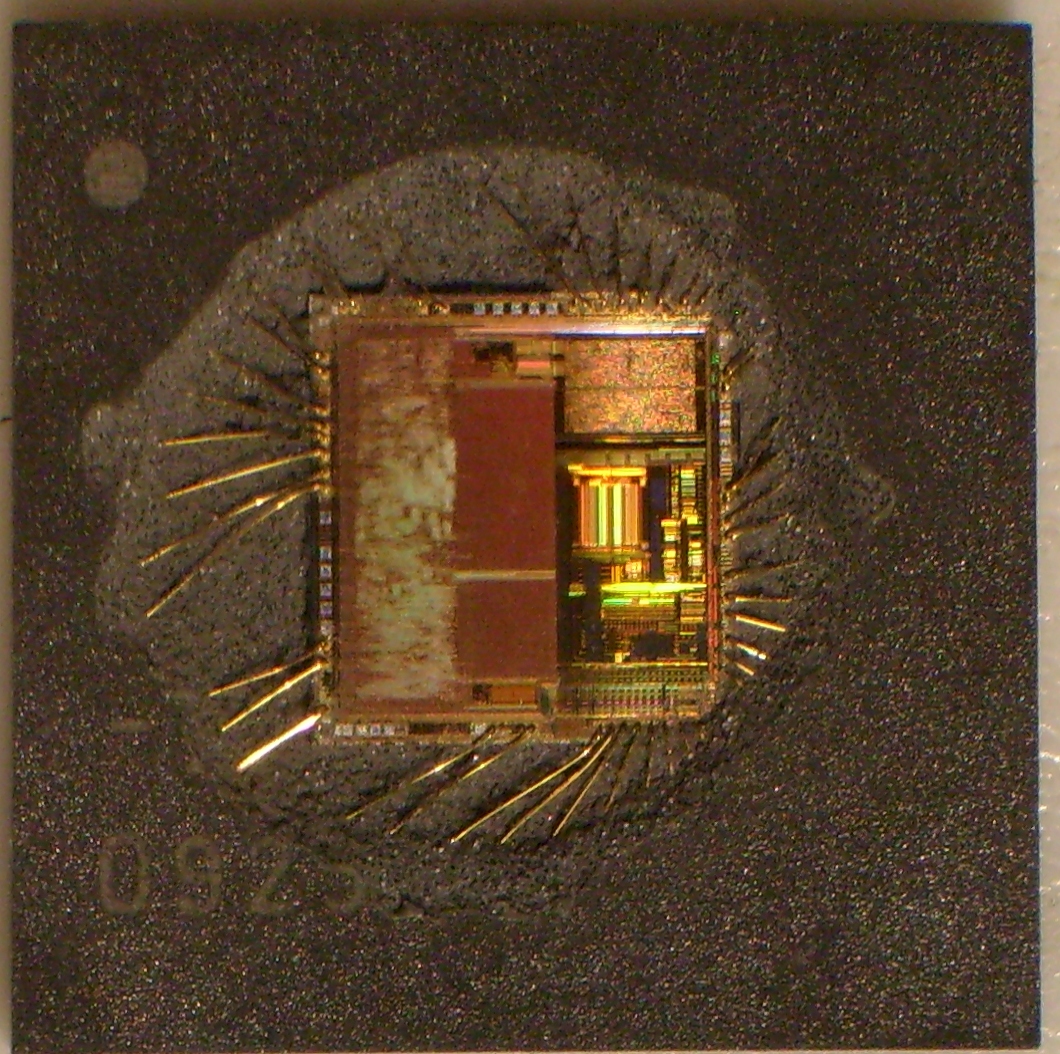

44-pin QFN, decapped live.

Die

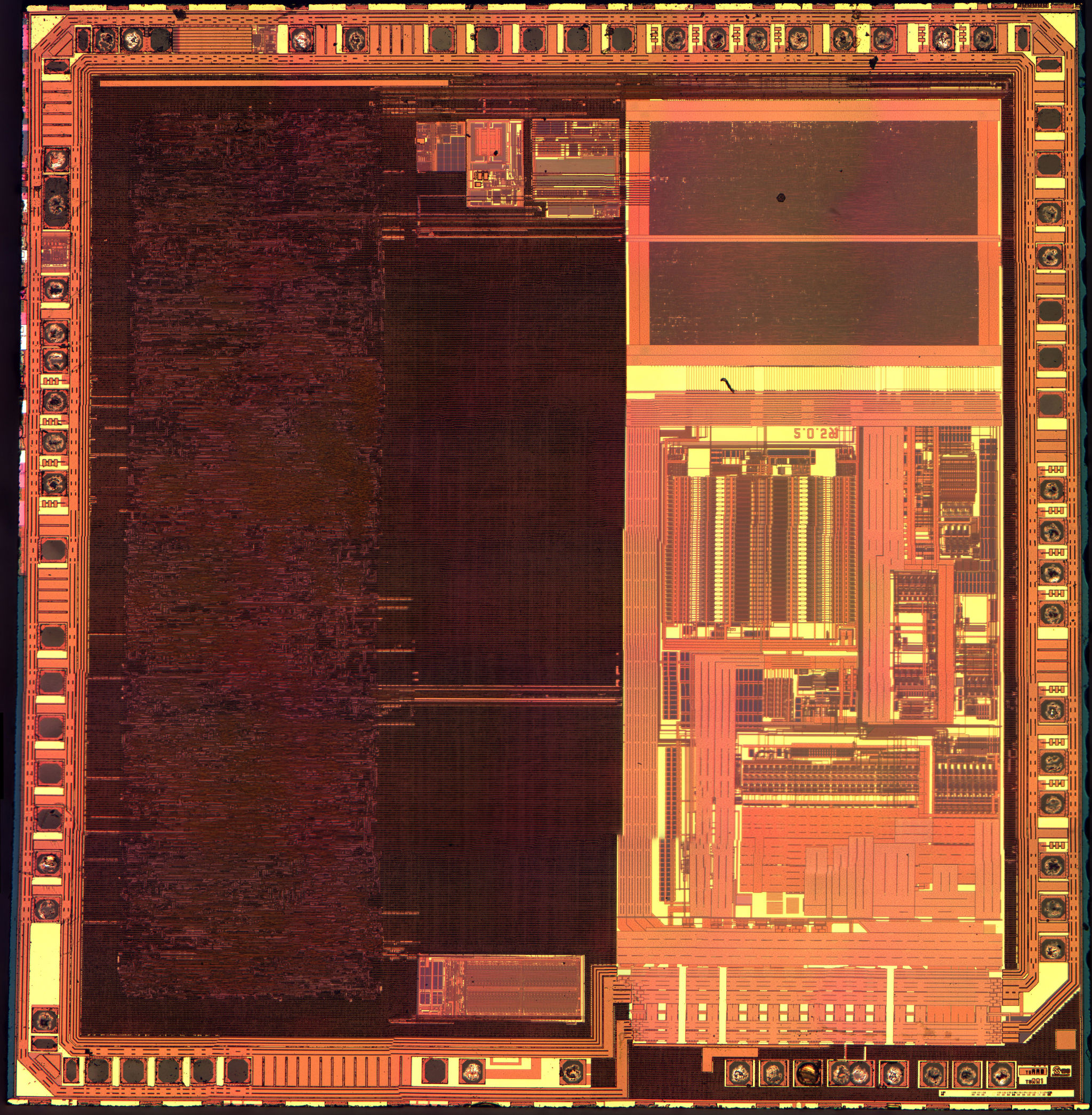

Rough stitch of old images with Am10x objective. Need to re-shoot at higher resolution.

Close-up of dense logic area at upper right:

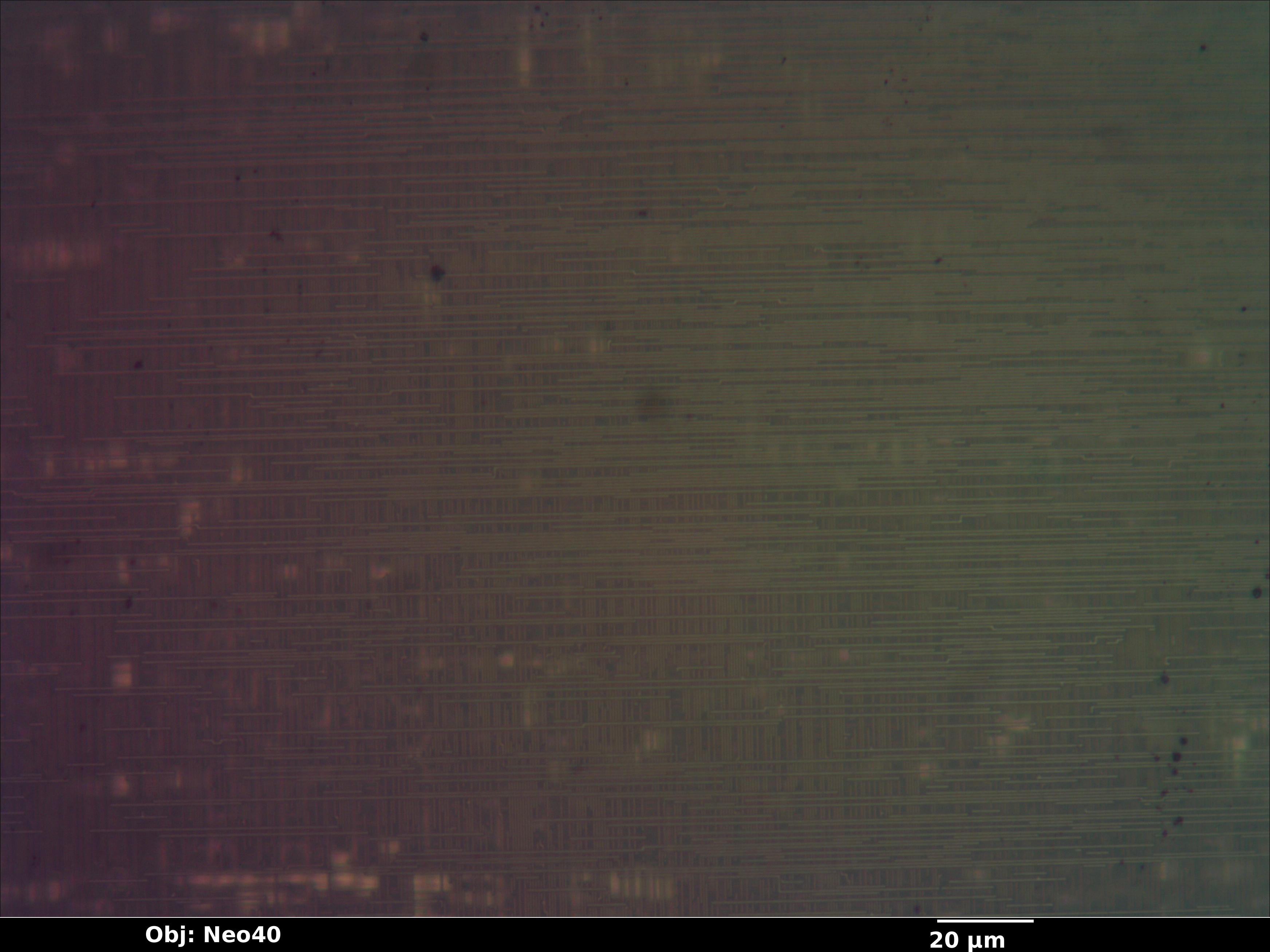

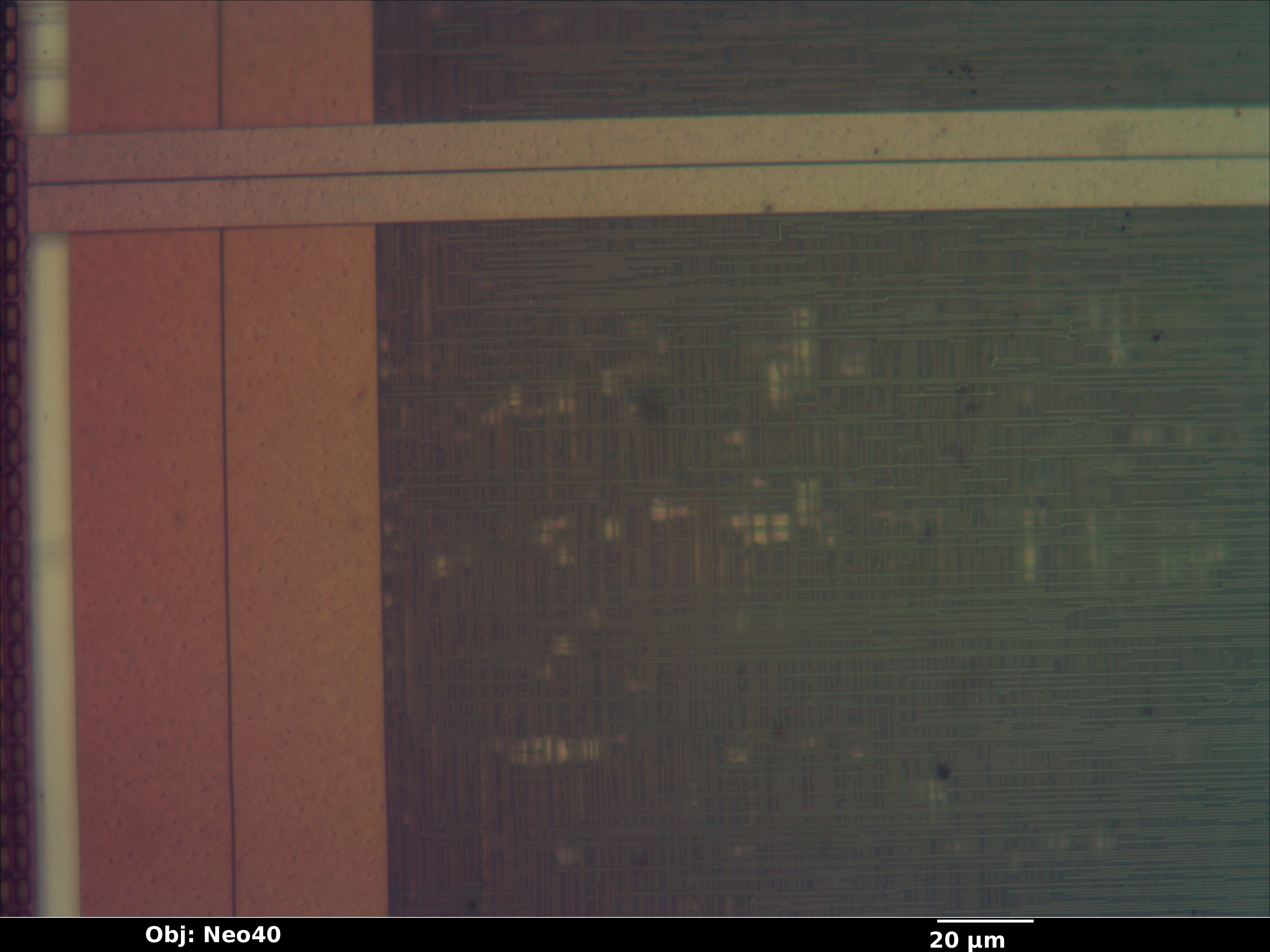

Partial HF delayer of SRAM. Confirmed to be same process as PIC32 based on SRAM cell pitch.

Single (14712×14989, 31.447MiB)
