azonenberg:atmel:atmega328p

collection az, vendor atmel, type processor, type processor/microcontroller, type processor/microcontroller/avr, year 2008, tech 350nm, foundry unknown

Looks like Atmel's standard 350 nm 3-metal process.

This is actually a 328P not a 328.

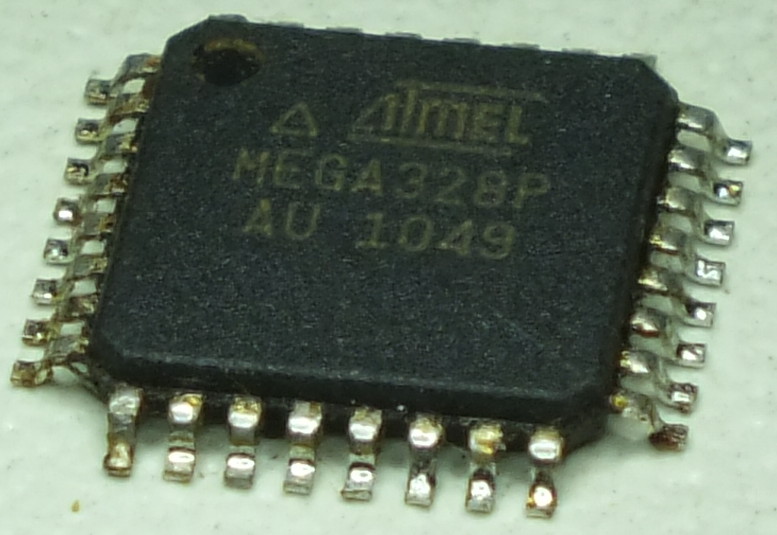

Package

Markings:

  (ATMEL)
  MEGA328P
  AU 1049

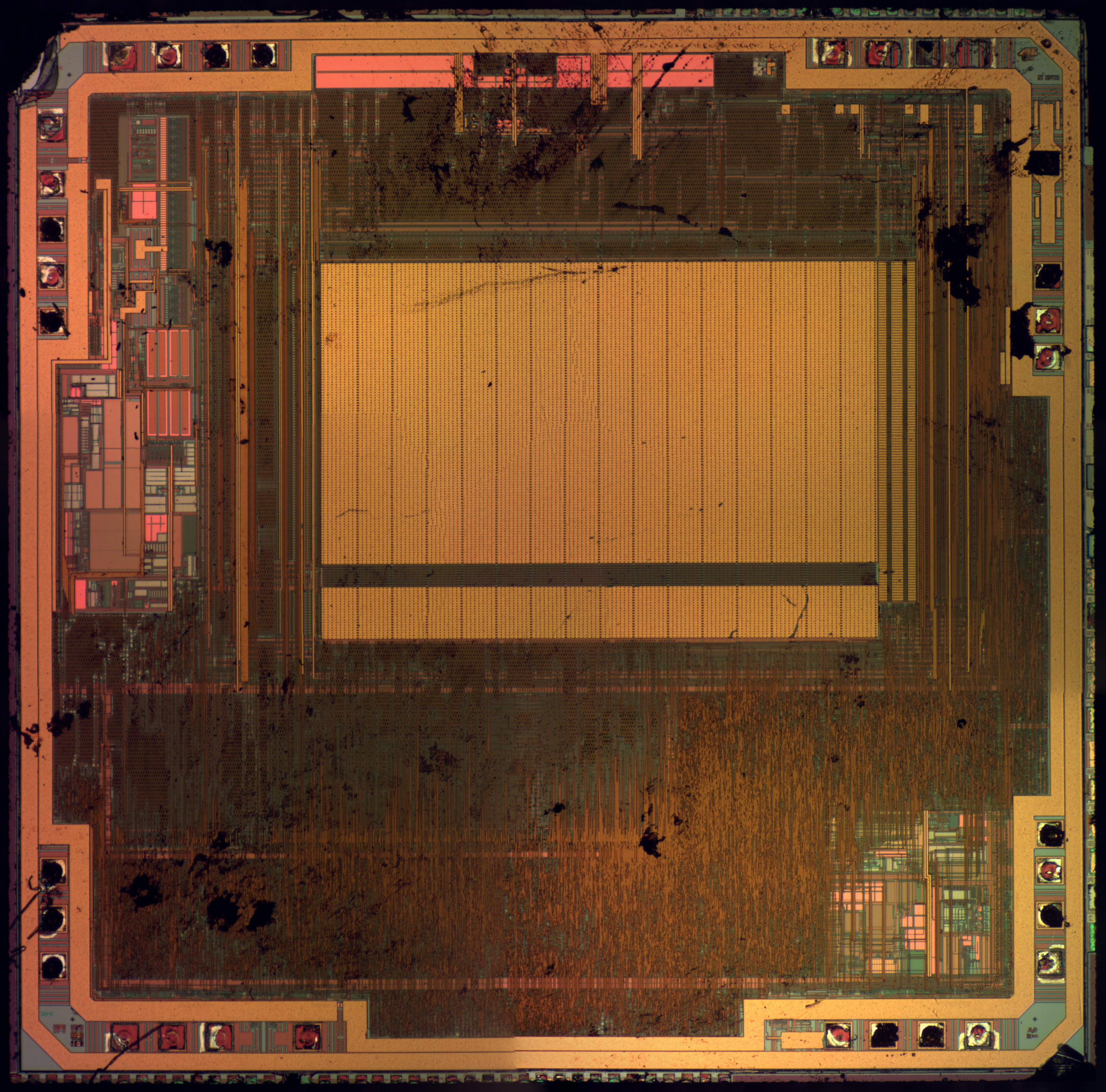

Die

Dimensions are approximately 2990 μm x 2950 μm (8.82 mm²)

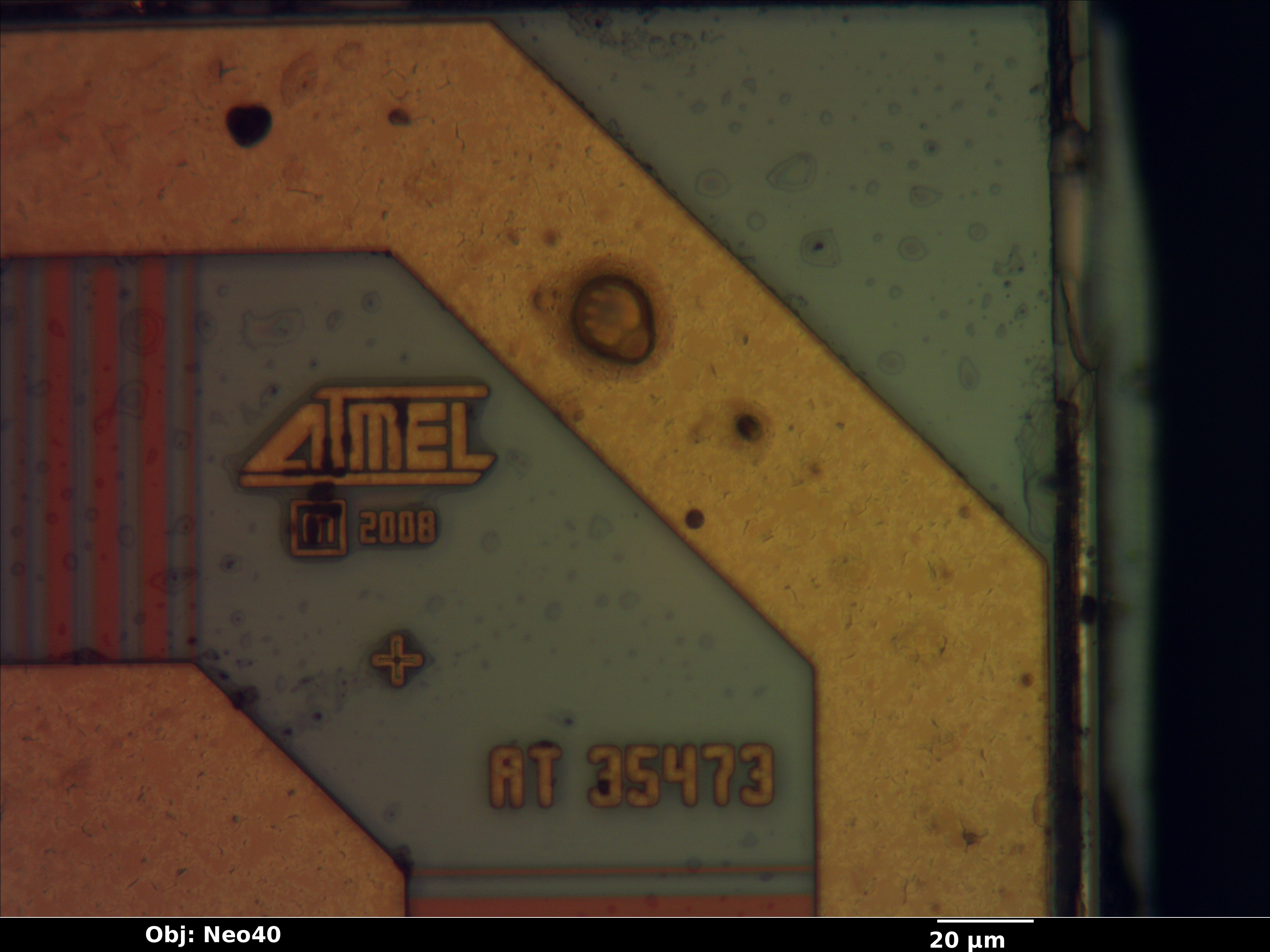

AT 35473
